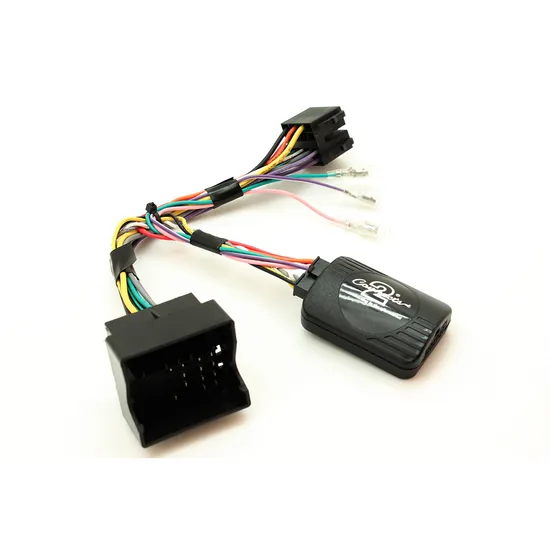

C2 STALK Citroen C2/C3/C5/C8

Steering wheel remote control adapter Citroen / Fiat / Toyota
Replacement item in preparation

Note:

CAN bus

connection: 40 pin Quadlock Citroen / Peugeot connector

Vehicles with radio preparation
Vehicles with radio coding

Vehicles without radio coding > Vehicle coding on OEM device required

Suitable for the following vehicles:

Citroën
Citroën Berlingo (7) 06/2008 - 03/2012
Citroën Berlingo (7) 04/2012 - 05/2015
Citroën Berlingo (7) 06/2015 - 06/2018
Citroën C2 (J) 12/2004 - 12/2009
Citroën C3 (F) 10/2005 - 01/2010
Citroën C3 (S) 01/2010 - 01/2017
Citroën C4 (L) 11/2004 - 08/2010
Citroën C5 (D) 10/2004 - 04/2008
Citroën C8 (E) 01/2008 - 07/2012
Citroën C8 (E) 07/2012 - 06/2014
Citroën DS3 (S) 03/2010 - 07/2014
Citroen Jumpy (X) 02/2007 - 05/2016
Citroen Nemo (A) 08/2008 - 12/2015
Citroen Xsara Picasso (C) 03/2004 - 02/2010

Fiat
Fiat Scudo (ZAF 270) 02/2007 -07/2016

Toyota
Toyota Proace 03/2013 - 08/2016

The following signals will be provided:

Reimported vehicles or vehicles with different software may be incompatible in terms of functions.

red: +12V ignition terminal 15
orange: +12V lighting terminal 58
purple/white: +12V reverse signal
pink: speed signal
green: ground GND handbrake signal

Load capacity of total outputs: 100 mA max.

Current requirement greater than 100 mA:
1 relay coil resistance 75 Ohm min.
2 relays coil resistance 150 Ohm min.Steering wheel remote control adapter Citroen / Fiat / Toyota
