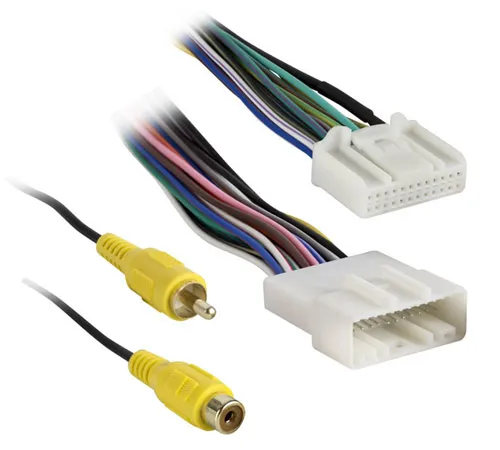

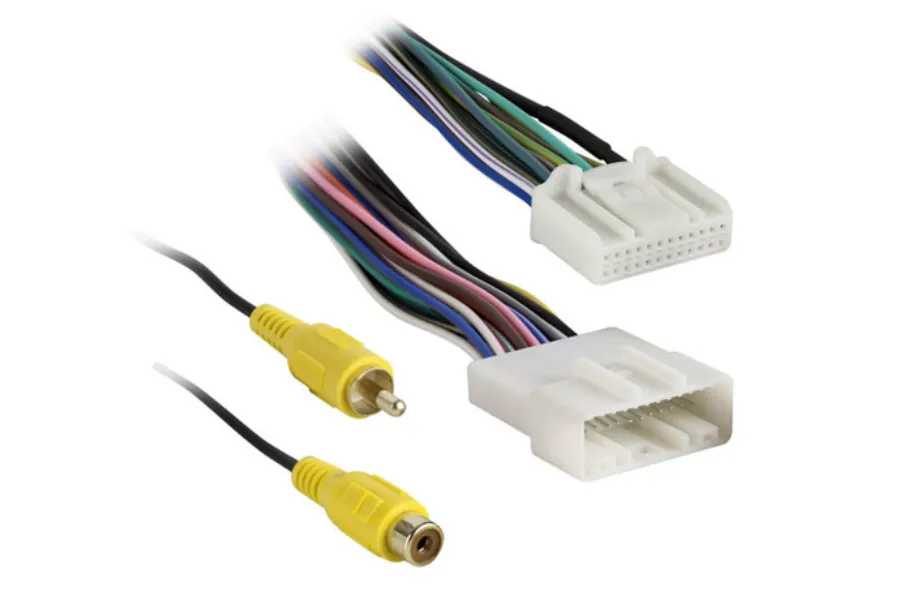

IncarTec Kamerasovite Toyota 24 pin

Allows you to add an aftermarket reverse view camera to the original factory fitted head unit on select Toyota (2012 Onwards) car models (Display and navigation model radios only).

This adapter cable also allows you retain the original OEM factory fitted camera when installing a new aftermarket head unit.



Installation

To retain/ keep the factory reverse camera when installing an aftermarket unit

• Connect the Black wire to the chassis ground
• Connect the Yellow wire to the accessory power
• Connect the male Yellow RCA plug to the reverse camera input of the aftermarket radio
• Connect the reverse wire from the aftermarket radio to the reverse signal in the vehicle
• Disregard the loose Green/ Purple wire, it will not be used when retaining

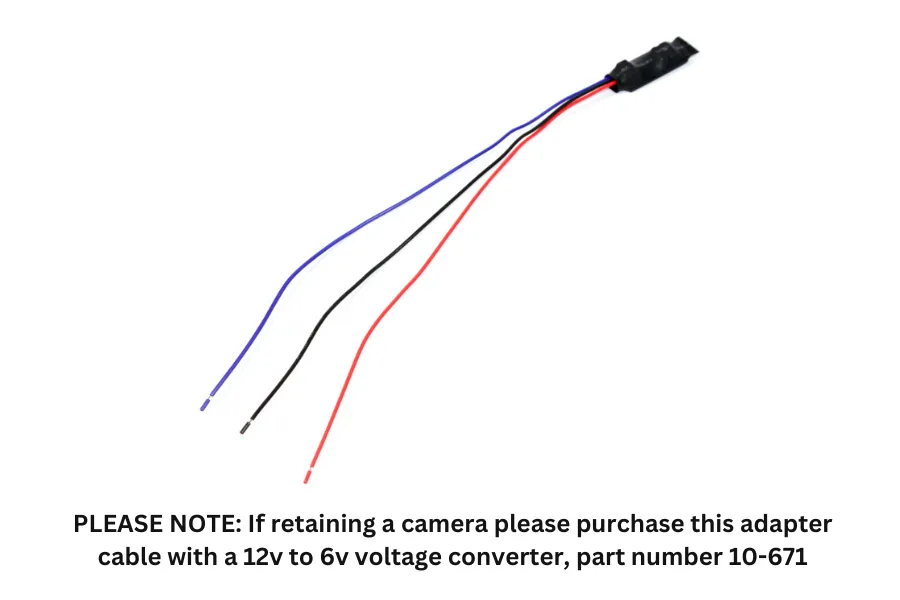

PLEASE NOTE: If retaining a camera please purchase this adapter cable with a 12v to 6v voltage converter, part number 10-671



To add an aftermarket camera to the original system screen

• Connect the Black wire to the ground wire of the aftermarket camera
• Connect the power wire of the aftermarket camera to accessory power
• Tape off and disregard the yellow wire, it is not required
• Connect the female Yellow RCA plug to the aftermarket camera


Compatible with select vehicle models



Toyota

4-Runner 2014-2016

4-Runner (without NAV) 2013

Avalon 2015-2016

Camry 2014-2016

Corolla 2014-2016

Highlander 2014-2016

Hilux (2014 Onwards)

Prius C 2015

Prius V 2015

Rav-4 2015-2016

Rav-4 (after build date Nov. 2013) 2014

Sequoia 2014-2016

Sienna 2015

Tacoma 2014-2016

Tundra 2014-2016

Venza 2015-2016
