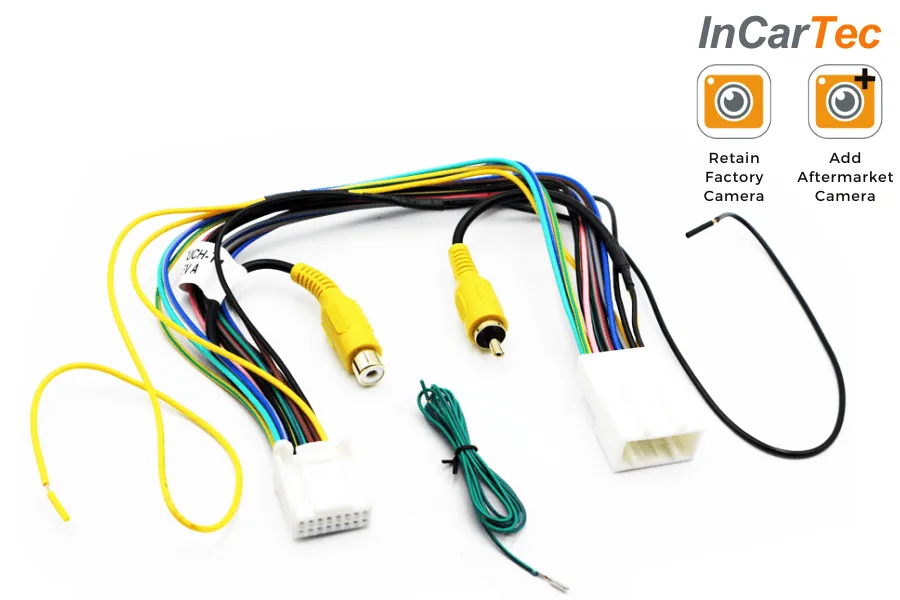

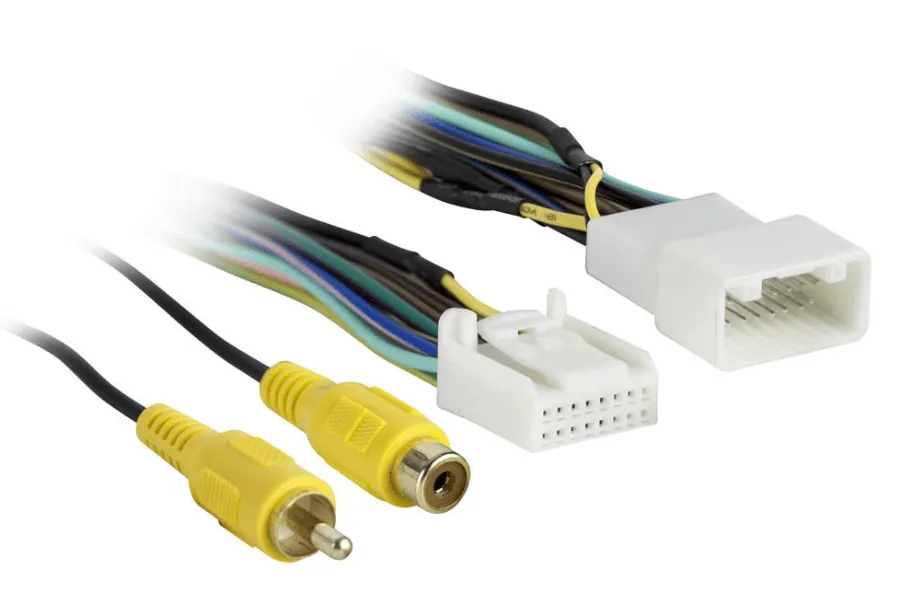

IncarTec Kamerasovite Toyota 16 Pin

Toyota

4-Runner (without a factory amp) 2012-2013
Auris 2010-2014
Avalon 2013-2014
Avensis 2011-2014
Camry 2012-2013
GT86 2012-2015
Highlander 2013
Hilux 2011-2014
Prius 2011-2014
Prius PHV 2012-2015
Prius V 2012-2014
Rav-4 (before build date Nov. 2013) 2014
Rav-4 2013
Sequoia 2013
Tacoma (with NAV) 2012-2013
Venza 2013-2014
Verso 2009-2014

Subaru
BRZ (2017 - 2020)
Forester 4th Gen (SJ) (2014 -2018)
Impreza (2015 - 2017)
XV (2015 - 2018)


Allows you to add an aftermarket reverse view camera to the original factory fitted head unit on select Toyota, Scion and Subaru car models (Display and navigation model radios only).

This adapter cable also allows you retain the original OEM factory fitted camera when installing a new aftermarket head unit.

---

Installation

To retain/ keep the factory reverse camera when installing an aftermarket unit

• Connect the Black wire to the chassis ground
• Connect the Yellow wire to the accessory power
• Connect the male Yellow RCA plug to the reverse camera input of the aftermarket radio
• Connect the reverse wire from the aftermarket radio to the reverse signal in the vehicle
• Disregard the loose Green/ Purple wire, it will not be used when retaining

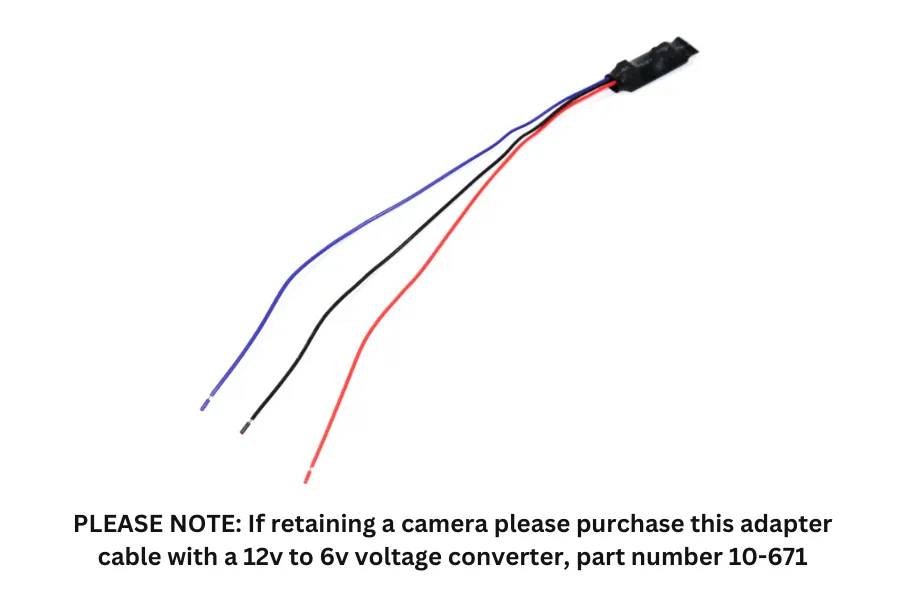

PLEASE NOTE: If retaining a camera please purchase this adapter cable with a 12v to 6v voltage converter, part number 10-671



To add an aftermarket camera to the original system screen

• Connect the Black wire to the ground wire of the aftermarket camera
• Connect the power wire of the aftermarket camera to accessory power
• Tape off and disregard the yellow wire, it is not required
• Connect the female Yellow RCA plug to the aftermarket camera
