ACV Rengasliitin Punainen 8mm 100 Kpl

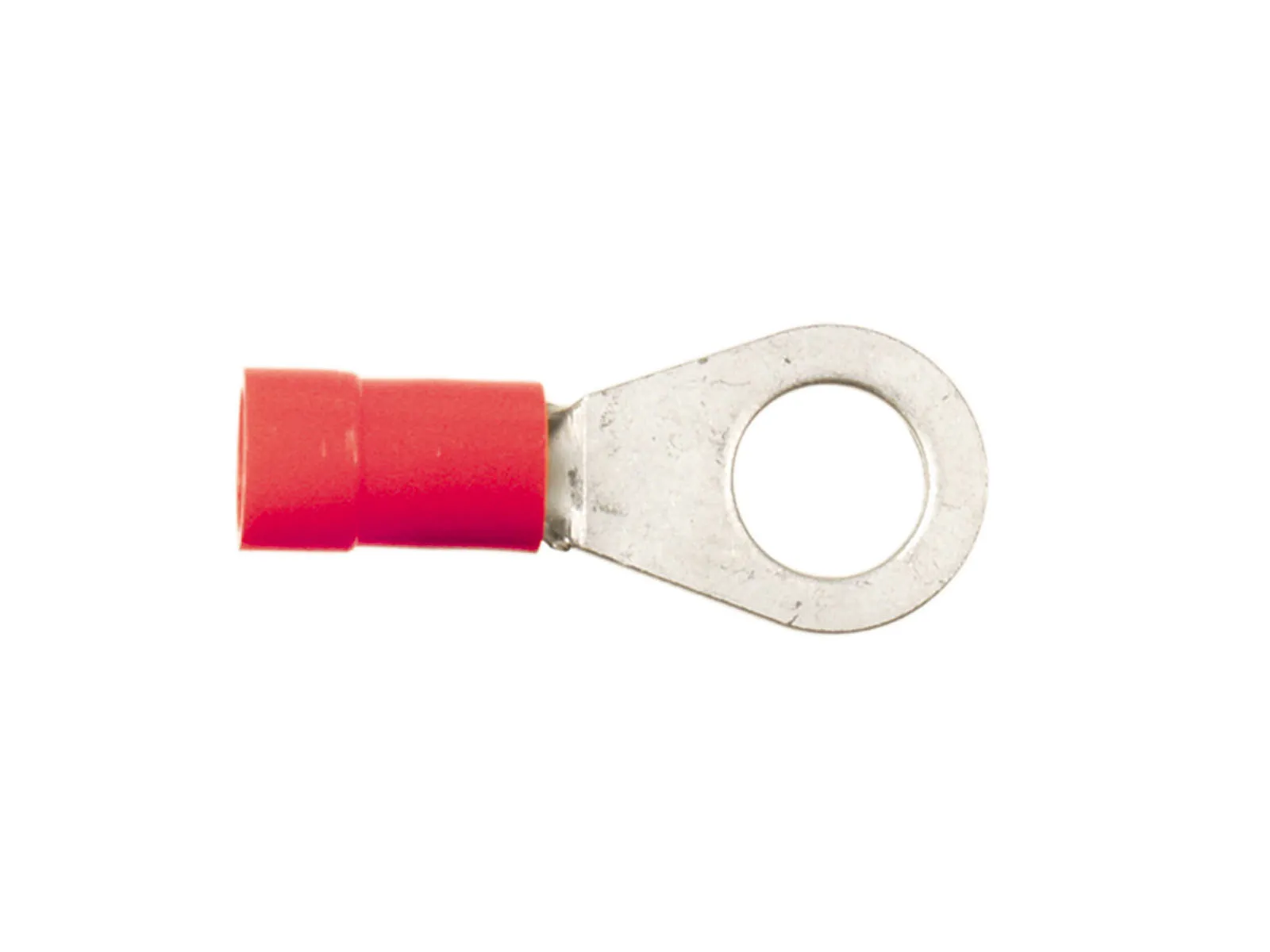

Ring terminal red

Standard series hard soldered

PVC ring terminal 0,5 mm² - 1,0 mm² / 8,4 mm copper tin plated

Hard-soldered ring terminals for optimum crimping capability made of high-quality electrolytic copper for good conductivity and electro-tinning for maximum corrosion protection.

Ring terminals to connect wires to screws and bolts are used in vehicle construction, switch cabinet and electrical system construction, cable assembly and mechanical engineering.

Use case:

cable diameter: 0,5 mm² - 1,0 mm²
cable diameter: 22 - 16 AWG

Technical data:

ring opening: 8,4 mm
ring wide: 11,6 mm
diameter cable entry: 4,3 mm² max.
sleeve length: 10,5 mm
total length: 27,6 mm
plug length: 17,1 mm

material: copper tin plated
insulation: PVC
operating temperature: 15 °C - 75 °C max.

REACH and RoHS compliant
UL certified

Content:

100 pieces
