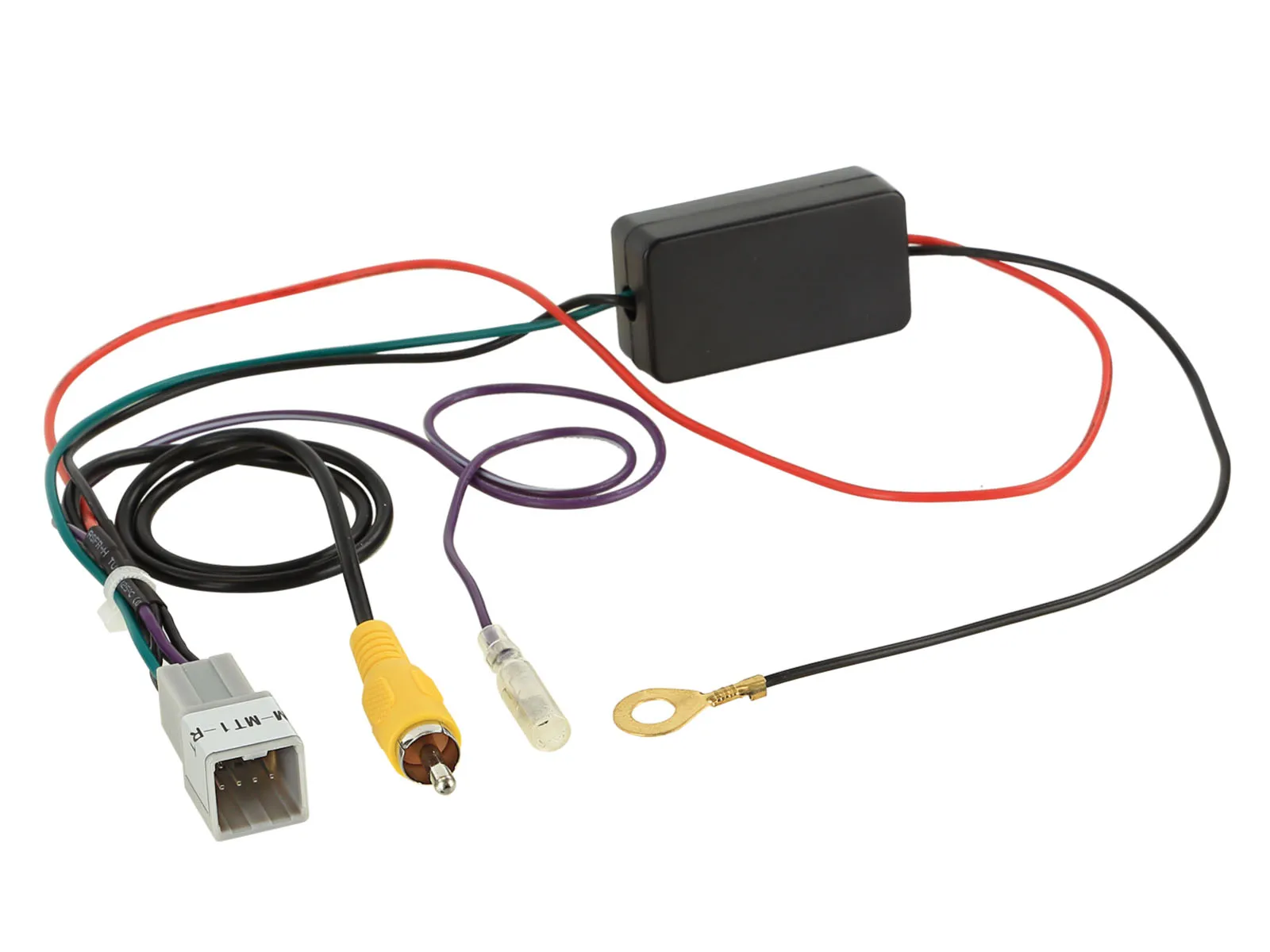

ACV Peruutuskamera-adap.Mitsubishi Outlander

Rear view camera adapter Fiat / Mitsubishi

Rear view camera adapters are required to maintain the OEM rear view camera.

These allow the connection of a factory pre-equipped camera to an aftermarket device with camera input.

Depending on the vehicle and equipment, the adapter provides the video signal RCA, a power supply +6V/ground for the OEM camera and the +12V revere gerar signal or this must be connected in the vehicle.

Vehicles with a 360° camera system or systems with moving distance lines may not be compatible.

Before installation check the correct assignment of the adapter to the OEM connector.

Many retrofit devices must be set to the camera function in the menu.

Note:

+6V power supply

connector: 8 Pin Mitsubishi
connector: OEM rear view camera > RCA(m) yellow camera input

black: GND clamp 31
purple/white: +12V reverse signal output

vehicles without +12V reverse signal in 8 Pin connector:
purple/white: +12V reverse signal input reversing light

OEM camera supply voltage: +6V

+6V supply voltage > before installation check for correct assignment with factory device by measuring

Use case:

OEM rear view camera retention

Vehicle aplication:

Fiat

• Fiat Fullback (KT0T) 08/2016 - 07/2020

Mitsubishi

• Mitsubishi ASX (GAO) 10/2012 -10/2016
• Mitsubishi ASX (GAO) 11/2016 - 08/2019
• Mitsubishi ASX (GAO) 09/2019 - 10/2021
• Mitsubishi L200(KJ0T) 10/2015 - 08/2019
• Mitsubishi L200 (KJ0T) 09/2019 - 10/2022**
• Mitsubishi Lancer (EVO X Limited Edition) 2015
• Mitsubishi Outlander (CWO) 10/2012 - 10/2015*
• Mitsubishi Outlander (CWO) 10/2015 - 08/2018*
• Mitsubishi Outlander (CWO) 09/2019 - 03/2022**
• Mitsubishi Pajero (V80) 10/2014 - 08/2018
• Mitsubishi Shogun 2013 - 2018

*360° OEM camera system supported
**vehicles with 360° OEM camera system:
SWC Mitsubishi L200/Outlander 18Pin/20Pin camera/Amp > item: 42smt012

---

General installation instructions:

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
