ACV Peruutuskamera-adap. Fiat Ducato

Rear view camera adapter Alfa Romeo / Citroen / Dodge / Fiat / Ford / Iveco / Jeep / Peugeot

Rear view camera adapters are required to maintain the OEM rear view camera.

These allow the connection of a factory pre-equipped camera to an aftermarket device with camera input.

Depending on the vehicle and equipment, the adapter provides the video signal RCA, a power supply +6V/ground for the OEM camera and the reversing signal.

Vehicles with a 360° camera system or systems with moving distance lines may not be compatible.

Before installation, check the correct assignment of the adapter to the OEM connector.

Many retrofit devices must be set to the camera function in the menu.

Note:

connector: 52 Pin Fiat contacts

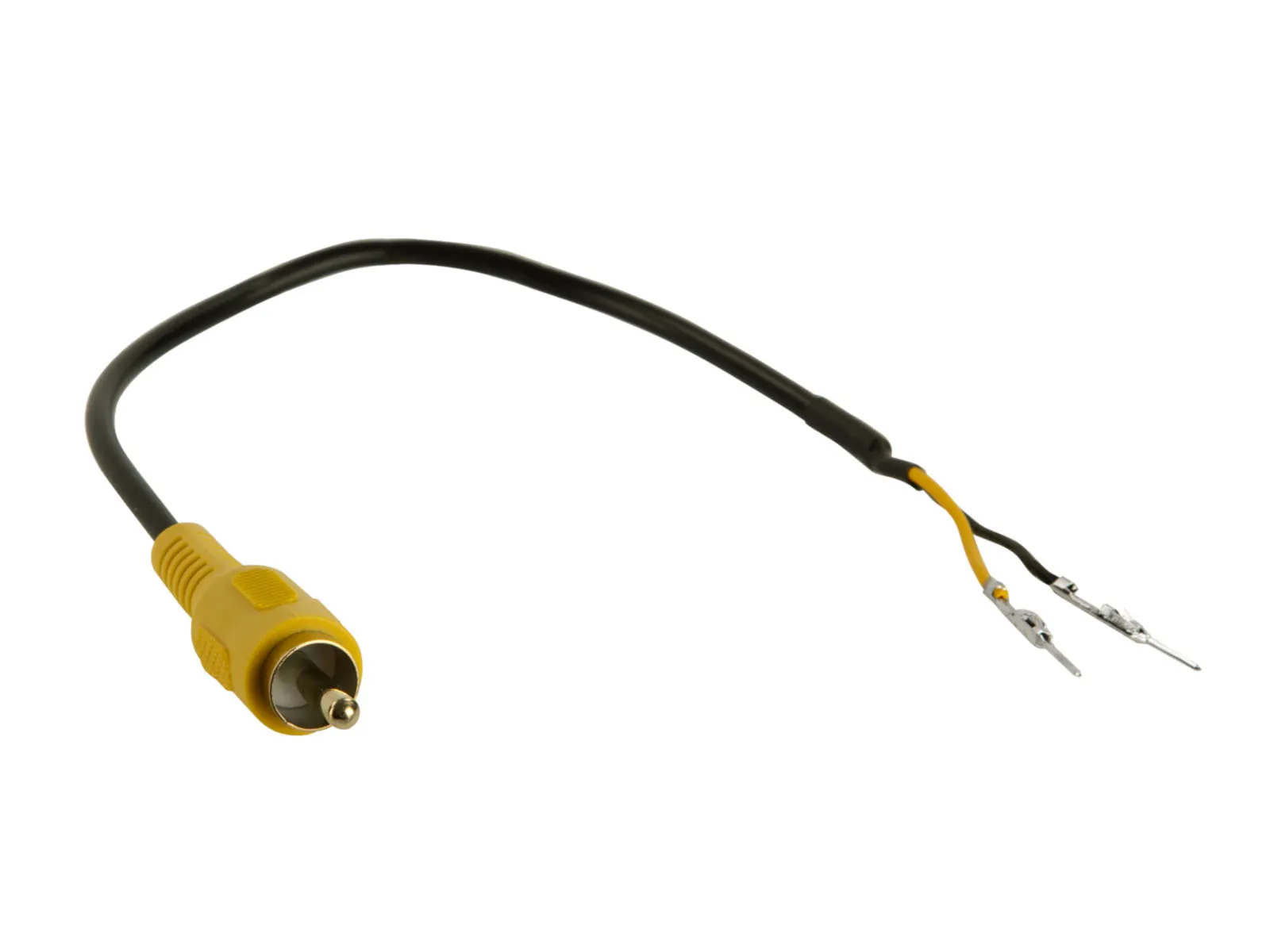

connector: OEM rear view camera > RCA(m) yellow

yellow: Video+
black: Video-

check assignment by measuring before installation

vehicles with 52 Pin Fiat connector OEM rear view camera connection:
red: Pin 31 Video+
white: Pin 32 Video -
black: Pin 33 shield

troubleshooting for flickering camera image: connect shield Pin 33 to GND contact

Ford vehicles with 32 Pin Ford connector OEM rear view camera connection:
Pin 14: Video+
Pin 25: Video-

troubleshooting for flickering camera image: connect Pin 24 to GND contact

Vehicle application:

Alfa Romeo

• Alfa 4C (960) 01/2014 - 08/2018
• Alfa Romeo Giuletta (940) 10/2013 - 04/2016
• Alfa Romeo Giuletta (940) 04/2016 - 12/2021
• Alfa Romeo MiTo (955) 12/2013 - 08/2016
• Alfa Romeo MiTo (955) 08/2016 - 08/2018

Citroen

• Citroen Jumper (250) 05/2014 - 10/2022
• Citroen Jumper (250) 10/2022 - 2024
• Citroen e-Jumper (259 10/2021 - 2024
• Citroen Relay (250) 2006- 2024

Dodge

• Dodge Durango 2014 - 2015
• Dodge RAM Promaster 2014 - 2015
• Dodge RAM Promaster City 2015 - 2021
• Dodge Ram 2013 - 2018

Fiat

• Fiat 500 (ZAF 312) 07/2015 - 2024
• Fiat 500L (ZAF 199) 10/2012 - 07/2017
• Fiat 500L (ZAF 199) 07/2017 - 03/2022
• Fiat 500X (ZAF 334) 01/2015 - 08/2018
• Fiat 500X (ZAF 334) 09/2018 - 2024
• Fiat Doblo (ZAF 263) 01/2015 - 06/2022
• Fiat Ducato (ZAF 250) 05/2014 -11/2021

Ford

• Ford Fiesta (JHH) 06/2017 - 03/2022
• Ford Fiesta (JHH) 03/2022 - 2024
• Ford Transit (FAC/FAD) 06/2019 - 2024
• Ford Transit Connect (PJ2) 06/2018 - 2024
• Ford Transit Custom (FAC/FAD) 01/2018 - 06/2023
• Ford Transit Custom (FAC/FAD) 07/2023 - 2024

Iveco

• Iveco Daily 2019 - 2024*

Jeep

• Jeep Grand Cherokee (WK) 06/2013 - 12/2016
• Jeep Renegade (BU) 10/2014 - 08/2018
• Jeep Renegade (BU) 09/2018 - 10/2020

Opel

• Opel Movano Cargo C (Y) 10/2021 - 01/2024
• Opel Movano Cargo C (Y) 01/2024 - 2024
• Opel Movano Electric Cargo C (Y) 10/2021 - 01/2024
• Opel Movano Electric Cargo C (Y)  01/2024 - 2024

Peugeot

• Peugeot Boxer (Y) 09/2014 - 12/2019
• Peugeot Boxer (Y) 08/2018 - 2024
• Peugeot e-Boxer (Y) 10/2021 - 2024

*vehicles with Hi-Connect OEM touchscreen HU

General installation instructions:

More connections, connection changes, alternative connections, connections of loose cables or connection extensions of loose cables specified in the information text or the manual are for orientation purposes only and for the information of trained specialist instaler.

More connections, changes to the cable configuration of the wiring harness or use of alternative connections or connection extensions:
1: Connections and changes are to be carried out exclusively by trained specialist installer.
2: Connections and modifications must be checked before connection for any manufacturer approvals or manufacturer warranty conditions that may be affected by the modifications.
3: Connections and modifications must be checked for function and correctness by measuring and comparing them with the vehicle's cable assignment diagram before connection.
4: Connections and modifications are made on the user's own responsibility without guarantee of function.
5: Connections and modifications are made on the user's own responsibility without any guarantee of damage to the vehicle, the retrofit device or the interface.
6: Modifications to the pre-assembled wiring harness may invalidate the product's warranty.
