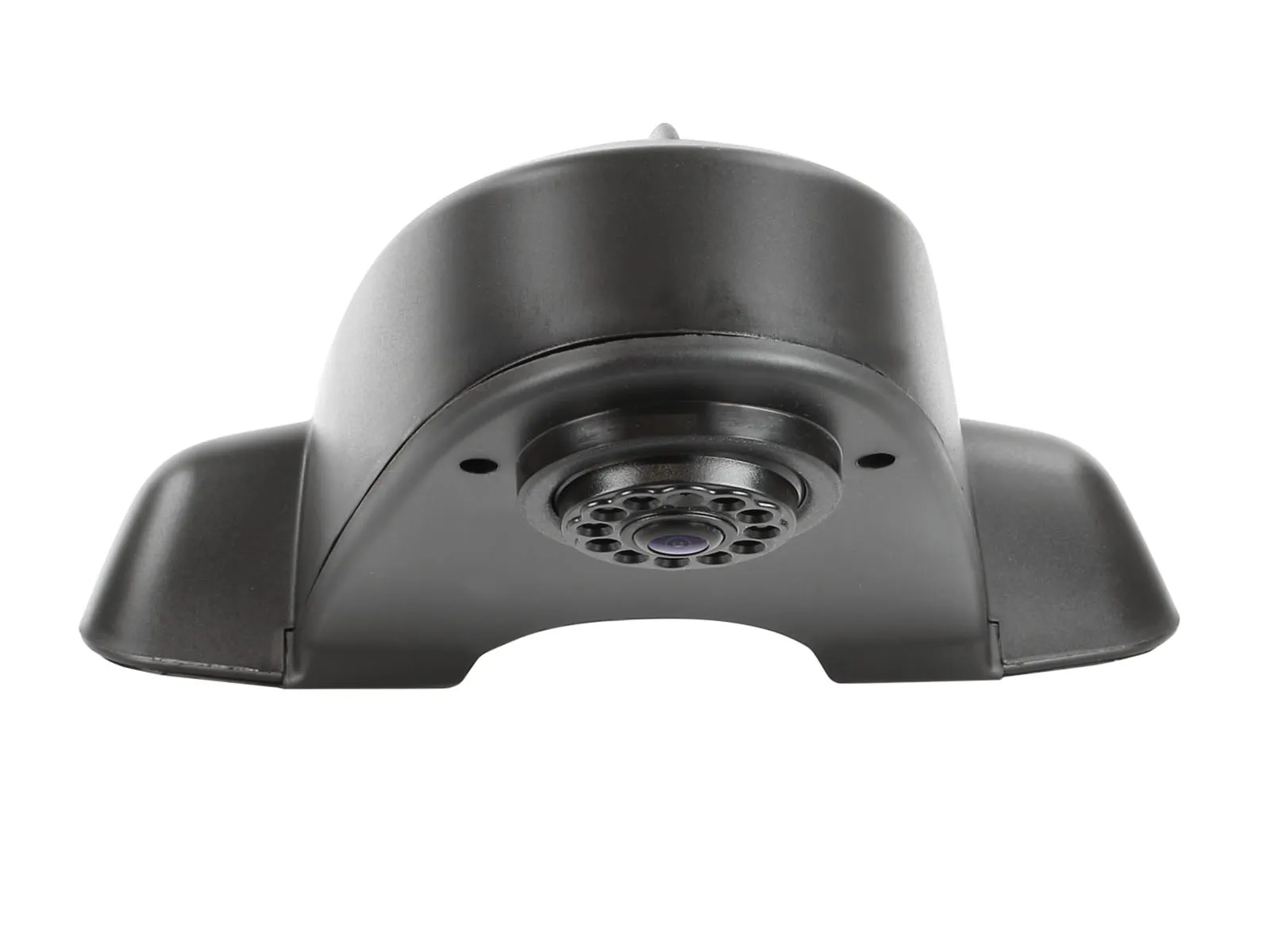

ACV Peruutuskamera Transporter NTSC

Rear view camera universal

Design: Transporter
Installation: roof system

with guiding lines / night view function

Note:

acv cameras are suitable for continuous operation

before installation > check the viewing angle and camera alignment at the installation site with a test monitor

camera operating voltage: +12V
camera power supply: +12

connection:
red: +12V switched load-stable fused
black: car body direct ground/GND

RCA(m) yellow: video

jumper:
green: guiding lines activate/deactivate

Product characteristic camera:

Design: plastic with ball head
Color: black
Extras: guiding lines via jumper / night view function
Image sensor: 1/3" CCD
TV system: NTSC color
Effective pixels: 628 x 512
Lens: 1,9mm / F 2.0
Lux: 0 Lux with activ night view
Resolution: 600 TV lines
Lens angle: diagonal 170°
View angle: horizontal 53° vertical 41° +5°
IP Rating: IP68
Terminal: 4 Pin acv-system connector(m) Ø5,2 mm
Operating voltage: +12V DC
Power supply: +12V DC
Current consumption: 200mA with activ night view
Operating temperature: -30°C - 75°C
Storage temperature: -40°C - 85°C
Measurements: L / W / H - 231mm / 198mm / 111mm

Pigtail at the camera 1m +/- :
4 Pin acv-system connector(m) Ø5,2mm
1 jumper

Extension cable 6,5m +/-:
4 Pin acv-system connector(f) Ø10mm /  4 Pin acv-system connector(m) Ø5,2mm
power wire red 3m +/- inlay cable: connection to camera / connection reverse light to monitor
ground/GND wire black 3m +/- inlay cable: connectrion car body direct/GND to camera / car body direct/GND to monitor

Connector cable 20cm +/-:
4 Pin acv-system connector(f) Ø10mm
red: power supply
black: GND
RCA(m) yellow: video

Installation accessories:

camera connection to interfaces:
Relay solid state close 2V-12V/1,5A max > item: 40-AD-REMOTE
camera connection to reversing light:
Rear viev camera voltage stabilizer reverse switch signal > item: 771000-6100

Optional accessory:

Camera cable extension for acv camera 5m > item: 771000-6305
Camera cable extension for acv camera 10m > item: 771000-6310
Camera cable extension for acv camera 15m > item: 771000-6315
