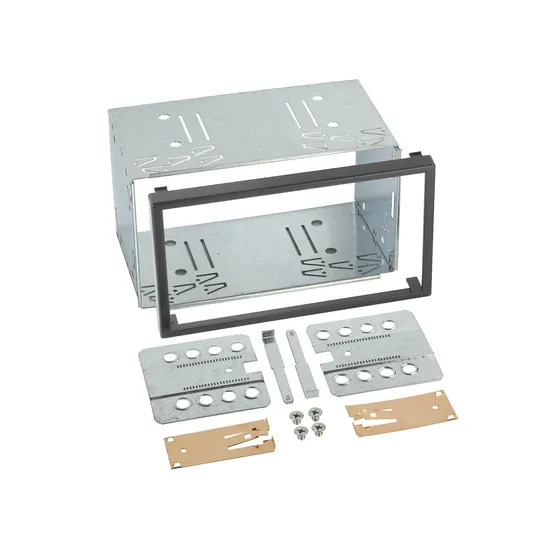

ACV 2-Din Peltikehys 102mm + Muovikehys

Note:

installation kit only conditionally suitable for L-units
unit mounting kit must be adapted

Use case:

2-ISO facia plate universal
installation kit for 2 DIN HU in 2 DIN facia plates with 2 ISO installation cut out
installation kit for 2 DIN HU in 2 ISO facia plates

Dimensions:

mounting frame: H =103 mm W = 183 mm
frame: H = 110mm W = 190 mm
HU frame: H = 100 mm x 180 mm

Mounting cut out cover frame HU display: H = 98 mm x W = 173 mm
